Pulldown

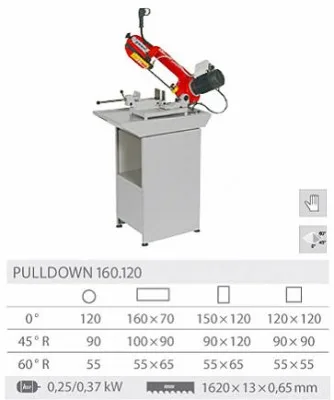

Manual band saws for metal These machines offer cutting at 90° as well as mitre cutting continuously up to 30° (arm turning up to 60°). Downfeed pressure is controlled manually by pulling a hand guide lever. The Pulldown 160.120 G manual band saw is the smallest machine of our offer. It is suitable for small cutting operations in workshop as a replacement for widely used disc grinding saws. Due to its accuracy, the machine is a perfect companion for metalworkers working at constructions. The saw is equipped with two-speed electric motor, quick acting vice and arm turning up to 60° Saw band motor output: 0,25 – 0,37 KW / 220 V Total power installed: 0,85 kVA Saw band speed: 35 / 70 m/min Saw band dimensions: 1620×13×0,65 mm Smallest diameter: 5 mm Shortest scrap lengt: 20 mm Material laying height: 90 mm Dimensions: 800×380×450 mm Weight: 38 kg
