Pressmaster

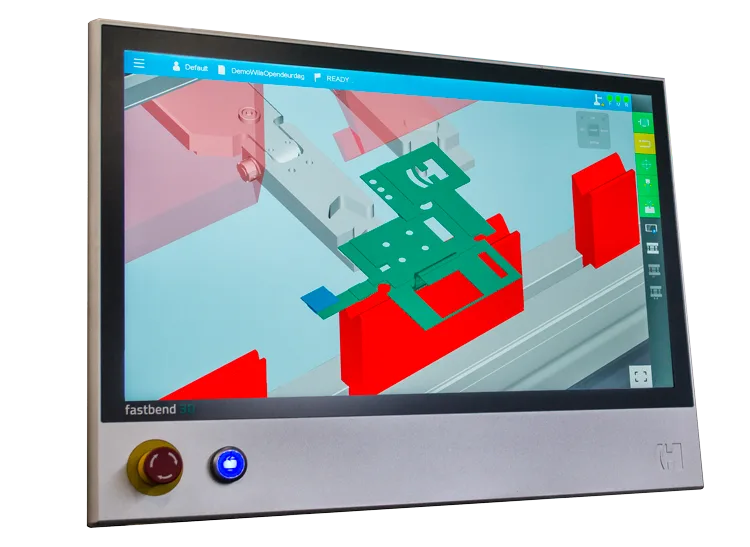

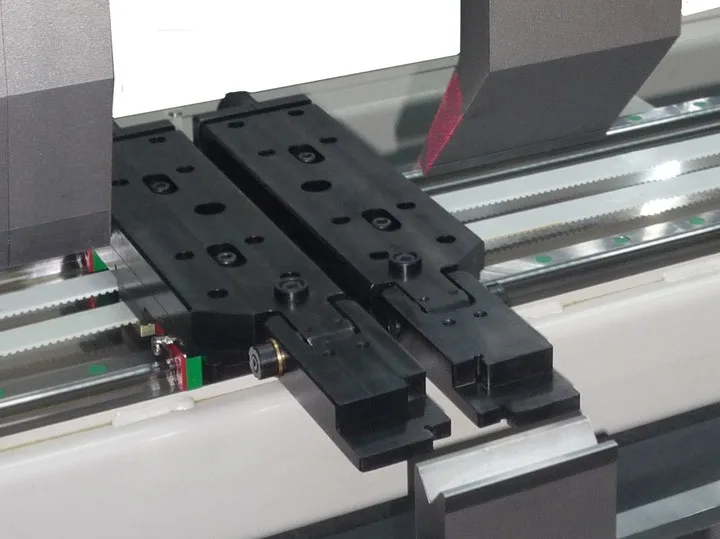

Top Level High-Spec machine Top level pressbrake with high-end specifications and execution. Increased Daylight Opening and Beam Stroke for increased bending freedom. Increased beam and backgauge speeds for high productivity. Innovative 3D Multi Touch graphical control. Possibility for extension with sophisticated options. Features accurate bending characteristics. Optional integration of advanced safety equipment. Standard equipment FastBEND-3D MT Premium control: 24” Multi Touch screen Smart Draft + MultiTasking + Step Previewer + Combined Icons + Auto Tooling + Part Manager-3D Increased Daylight Opening (540m), Stroke (370mm) and Gap (400mm) Increased Fast Approach Beam Speed (up to 200mm/s) and Fast Return Speed (up to 170mm/s) High Speed X-R-Z1-Z2 Backgauge for accurate sheet positioning Stroke X = 800mm, maximum speed = 1000mm/s Stroke R = 130mm, maximum speed = 250mm/s Maximum speed Z1 and Z2 axes = 1000mm/s New Standard (NS) hydraulic top tool clamping CNC controlled Anti Deflection Table (Crowning) for NS dies 2 Sheet Supports with guiding, manually adjustable in height LED illumination of the bending area You Competitive Edge Ultimate Price-Quality Ratio State-Of-The-Art User Friendly 3D Multi Touch Control Lowest Cycle Times FastBEND 3D MT Premium The FastBEND-3D MT Premium control sets a new standard in the market for flexible, intuitive, reliable and high precision sheet metal bending. Driven by state-of-the-art PC-based hardware, the system allows for very fast data processing and highly accurate calculation of the optimal bending programs for hydraulic CNC press brakes [wpdm_package id=’3529′] [wpdm_package id=’3541′] [wpdm_package id=’3527′]
