MULTI-AXIS Turning

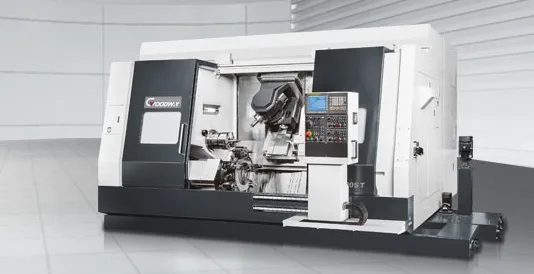

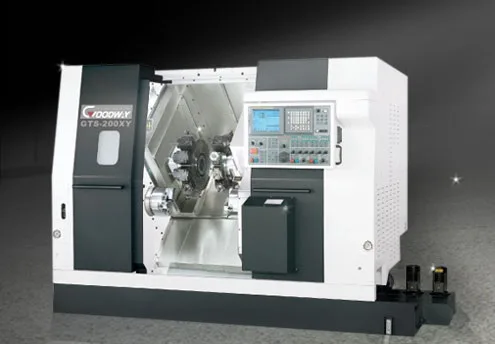

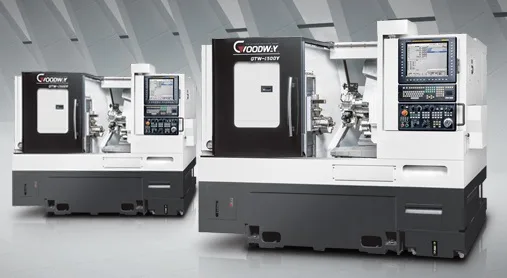

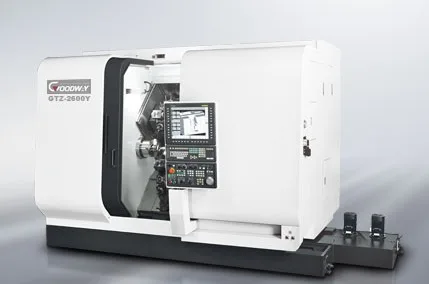

GTH series / Parallel Twin Spindle Turning Centers Max. turning diameter : Ø 300 mm Max. turning length : 205 mm Chuck size : 10″ Spindle motor ( cont. / 30 min. ) : 11 / 15 kW Turret : 12 GMS series / Tool Spindle Type 5-axis Turning Centers Max. swing diameter : Ø 900 mm Max. turning diameter : Tool spindle : Ø 550 mm Turret : Ø 340 mm Max. turning length : Tool spindle : 1,100 mm ( 8″ ), 1,094 mm ( 10″ ) Turret : 960 mm Chuck size : 8″ / 10″ Spindle motor ( cont. / 30 min. ) : 22 / 25 kW Turret / Live tooling turret : 24 ( 40 ) / 15 GTW series / Turret / Gang Tooling Turning Centers Max. swing diameter : Ø 550 mm Max. turning diameter : Ø 250 mm Max. turning length : 210 mm Chuck size : 6″ Spindle motor ( cont. / 30 min. ) : 10 / 15 kW Turret / Gang tooling turret : 12 / 8 GTZ series / Twin Spindles & Turrets Turning Centers Max. swing diameter : Ø 270 mm Max. turning diameter : Ø 250 mm Max. turning length : 592 ~ 615 mm Chuck size : 6″ / 8″ Spindle motor ( cont. / 30 min. ) : 11 / 15 kW Turret / Live tooling turret : 12 + 12 ( Opt. 16 + 16 ) GTS series / Twin Spindles & Turrets Turning Centers Max. swing diameter : Ø 180 / 280 mm Max. turning diameter : Ø 100 ~ ∞ / 200 ~ ∞ mm Max. turning length : 592 ~ 615 mm Chuck size : 6″ / 8″ / 10″ Spindle motor ( cont. / 30 min. ) : 5.5 / 7.5 kW ; 11 / 15 kW Slide way type : Linear guide way / Box way
