Horizontal turning

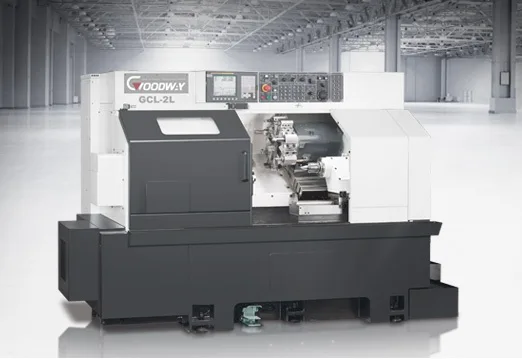

GA Series / High Performance Turning Center Chuck Size : 8″ ~ 15″ Bar Capacity : Ø 51 ~ 105 mm Max. Turning Diameter : Ø 350 ~ 500 mm Max. Turning Length : Ø 300 ~ 1,200 mm Spindle : A2-6, A2-8, A2-11 Spindle Motor ( cont. / 30 min. ) : 11 / 15 kW ; 22 / 18.5 kW Turret : 10-Station ( Opt. 12 ) GCL-2 Series / High C/P Value Turning Center Chuck Size : 8″ Bar Capacity : Ø 51 mm Max. Turning Diameter : Ø 230 mm Max. Turning Length : Ø 300 / 600 mm Spindle : A2-6 Spindle Motor ( cont. / 30 min. ) : 11 / 15 kW Turret : 8-Station ( Opt. 12 ) GLS-150 Series / High Speed Turning Center Chuck Size : 6″ / 8″ / 10″ Bar Capacity : Ø 45 / 51 / 65 mm Max. Turning Diameter : Ø 400 mm Max. Turning Length : 500 mm Spindle Nose : A2-5 / A2-6 / A2-8 Spindle Motor ( cont. / 30 min. ) : 7.5 / 11 kW Turret : 10 / 12 Stations GLS-1500 Series / High Speed Turning Center Chuck Size : 6″ / 8″ Bar Capacity : Ø 45 / 51 mm Max. Turning Diameter : Ø 430 mm Max. Turning Length : 330 mm Spindle Nose : A2-5 / A2-6 Spindle Motor ( cont. / 30 min. ) : 7.5 / 11 kW Turret : 12-Station GS-200 Series / Ultra Performance Turning Center Chuck Size : 8″ / 10″ Bar Capacity : Ø 51 / 65 / 75 mm Max. Turning Diameter : Ø 620 mm Max. Turning Length : 600 / 1,200 mm Spindle : A2-6 / A2-8 Spindle Motor ( cont. / 30 min. ) : 11 / 15 kW Turret : 12-Station GS-2000 / 3000 Series / Maximum Performance Turning Center Chuck Size : 8″ / 10″ / 12″ / 15″ Bar Capacity : Ø 51 / 65 / 75 / 90 / 105 mm Max. Turning Diameter : Ø 400 / 460 mm Max. Turning Length : 570 mm Spindle Nose : A2-6 / A2-8 / A2-11 Spindle Motor : 15 / 18.5 kW ; 18.5 / 22 kW Turret : 12-Station GS-4000 Series / Ultra Performance Turning Center Chuck Size : 15″ ( 18″ ) / Ø 24″ Bar Capacity : Ø 115 / 165 mm Max. Turning Diameter : Ø 620 mm Max. Turning Length : 819 / 1,569 / 2,369 / 3,169 mm Spindle Nose : A2-11 / A2-15 Turret : 12-Station GS-6000 Series / Heavy Duty Turning Center Chuck Size : 15 ( 18″ ) / 20″ / 22″ Bar Capacity : Ø 115 / 180 / 205 mm Max. Turning Diameter : Ø 880 mm Max. Turning Length : 950 / 1,980 / 3,300 mm Spindle Nose : A2-11 / A2-15 Spindle Motor : 30 / 37 kW Turret : 12-Station GS-8000 Series / Heavy Duty Supersize Turning Centers Chuck Size : 18″ ( 24″ ) Bar Capacity : Ø 205 / Ø 260 / Ø 320 mm Max. Turning Diameter : Ø 970 mm Max. Turning Length : 1,200 / 2,200 / 3,200 mm Spindle Nose : A2-15 / A2-20 Spindle Motor : 30 / 45 kW Turret : 12-Station HA Series / Flat-bed Turning Center Chuck Size : 24″ Max. Turning Diameter : Ø 1,100 / 1,300 / 1,700 mm Max. Turning Length : 2,000 / 3,000 / 4,000 / 5,000 mm Spindle Nose : A2-15 / A2-20 / A2-28 Spindle Motor ( cont. / 30 min. ) : 37 / 45 kW Turret : 12 ( Opt. 4 ) TS-100 Series / Gang Type Turning Center Chuck Size : 6″ or 42 collet chuck Bar Capacity : Ø 32 / 45 mm Max. Turning Diameter : Ø 200 mm Max. Turning Length : 290 mm Spindle Nose : A2-5 Taper Spindle Motor ( cont. / 30 min. ) : 3.7 / 5.5 kW Turret : Gang, 8-Station Turret
